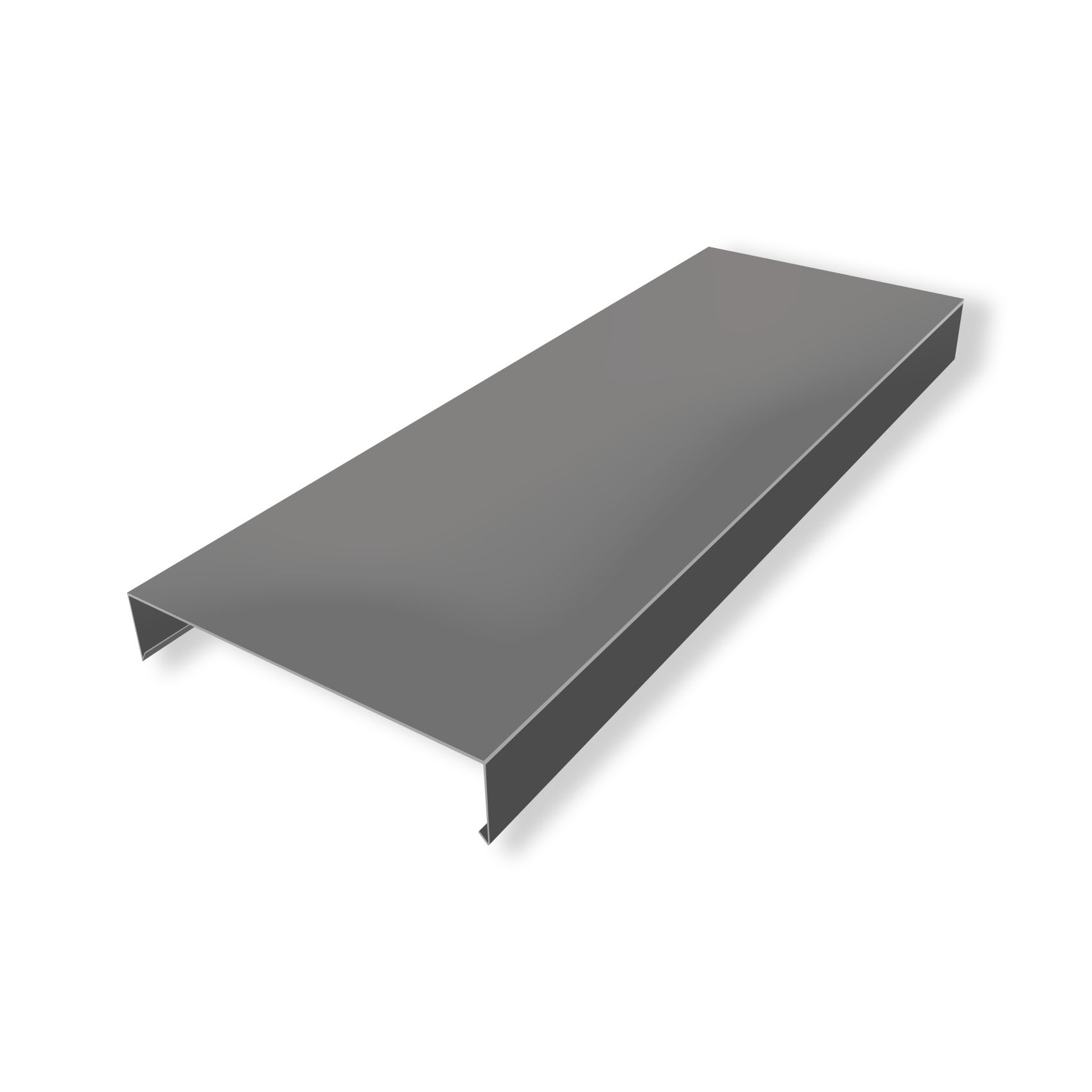

Aluminium Wall Coping Section 1m Length
The DC Facades Aluminium Wall Coping Section 1m Length presents a swift, uncomplicated, and budget-friendly resolution for completing elevated parapet walls on level rooftops. Each 1-meter section is equipped with fastening straps that securely attach to the wall’s apex, facilitating the effortless placement of the coping which seamlessly locks into position. This mechanism negates the necessity to puncture the final surface, concurrently promoting airflow across the wall.
At the DC Facades, we are committed to offering you a diverse selection, which underlines our array of wall coping options spanning 29 different widths and over 25 standard colours. Furthermore, our commitment to customisation extends to tailored dimensions and the inclusion of RAL/BS colours, incurring only a modest additional fee. Reach out to us for a conversation on our personalised assortment.
Widest Range of Aluminium Wall Copings
Every DC Facades Coping product is initially crafted in a plain or untreated finish, subsequently undergoing a cutting-edge polyester powder coating procedure. This technique empowers us to introduce an additional 26 shades to our repertoire. While most colours are available in a subtle matte texture, a glossy finish is exclusive to black and silver hues, and selected colours can feature textured surfaces for added visual interest.
Coping Benefits:
- Aluminium is 100% recyclable
- UK Manufactured
- 25+ Colours available as standard
- 29 Widths available as standard
- Mill product available to deliver in 3 days
- PPC products available to ship in 10 days
- Bespoke colours and sizes available
- 50 Year life expectancy in rural/suburban areas (30 in industrial/marine areas)
Coping Size Guide:
| Wall Thickness | Coping Width | Gauge | Fixing Straps Included |
| 91-120mm | 182mm | 2mm | 1 |
| 121-150mm | 212mm | 2mm | 1 |
| 151-180mm | 242mm | 2mm | 1 |
| 181-210mm | 272mm | 2mm | 1 |
| 211-240mm | 302mm | 2mm | 1 |
| 241-270mm | 332mm | 2mm | 1 |
| 271-300mm | 362mm | 2mm | 1 |
| 301-330mm | 392mm | 2mm | 1 |
| 331-360mm | 422mm | 2mm | 1 |
| 361-390mm | 452mm | 2mm | 1 |
| 391-420mm | 482mm | 2mm | 1 |
| 421-450mm | 512mm | 3mm | 1 |
| 451-480mm | 542mm | 3mm | 1 |
| 481-510mm | 572mm | 3mm | 1 |
| 511-540mm | 602mm | 3mm | 1 |
| 541-570mm | 632mm | 3mm | 1 |
| 571-600mm | 662mm | 3mm | 1 |
| 601-630mm | 692mm | 3mm | 1 |
| 631-660mm | 722mm | 3mm | 1 |
| 661-690mm | 752mm | 3mm | 1 |
| 691-720mm | 782mm | 3mm | 1 |
| 721-750mm | 812mm | 3mm | 1 |
| 751-780mm | 842mm | 3mm | 1 |
| 781-810mm | 872mm | 3mm | 1 |
| 811-840mm | 902mm | 3mm | 1 |
| 841-870mm | 932mm | 3mm | 1 |
| 871-900mm | 962mm | 3mm | 1 |
| 901-930mm | 992mm | 3mm | 1 |
| 931-960mm | 1022mm | 3mm | 1 |
If you’re uncertain about the necessary width of the coping, just measure your wall and locate the matching dimension in the initial column of the provided table. The adjacent column provides the applicable coping width for your wall, which you can then enter into the available choices above, along with your preferred colour. The table also provides information about the Aluminium’s gauge or thickness, as well as the quantity of fastening straps included per length.
Coping Standard measurements:
As depicted in the image below, our standard “downleg” measurement on all coping units is 75mm. The rationale behind the coping’s broader dimensions than your wall stems from the necessity to accommodate 16mm returns and, in addition, a minimum 31mm overhang. This combination ensures proper ventilation and a secure attachment to the bracket.
All of DC Facades’ wall coping products are fashioned from lightweight, premium-quality Aluminium. Despite being a relatively recent addition, Aluminium has risen to become the world’s second most utilised metal after steel. Referred to as the “magic metal,” it boasts distinctive physical, chemical, and mechanical attributes that render it excellently suited for employment in coping, fascia, soffit, and guttering systems.
Anticipating the comprehensive nature of a system of this scope, we also offer an extensive selection of complementary components, encompassing bends, tees, and end pieces.
Coping Installation:
- Made from durable and lightweight aluminium
- Fixing straps (included per length)
- Fixing straps have an EDPM seal
- A push-click fitting system
- Fully waterproof Non-penetrating fixings
- Suitable for existing properties and new builds
- Minimal maintenance required
